Create Hosted Search Pages

THIS IS ARCHIVED DOCUMENTATION

Create Hosted Search Pages

This is for:

In this article

Coveo organization setup
Building hosted search pages
Search page deployment to your production Coveo organization (Administrator)

Coveo will be sunsetting Coveo for Sitecore JSS in March 2023. Coveo for Sitecore JSS documentation will no longer be available after this date.

We recommend Coveo for Sitecore JSS users migrate their search interfaces. The Coveo Atomic and Headless libraries let you use your preferred web application framework (for example, React, Angular, Vue.js) to build search interfaces.

Inserting the Coveo for Sitecore Coveo Hosted Search Page JSS component in a website page, combined with the development of classic hosted search pages in your Coveo organization makes for a simple search page development and update process.

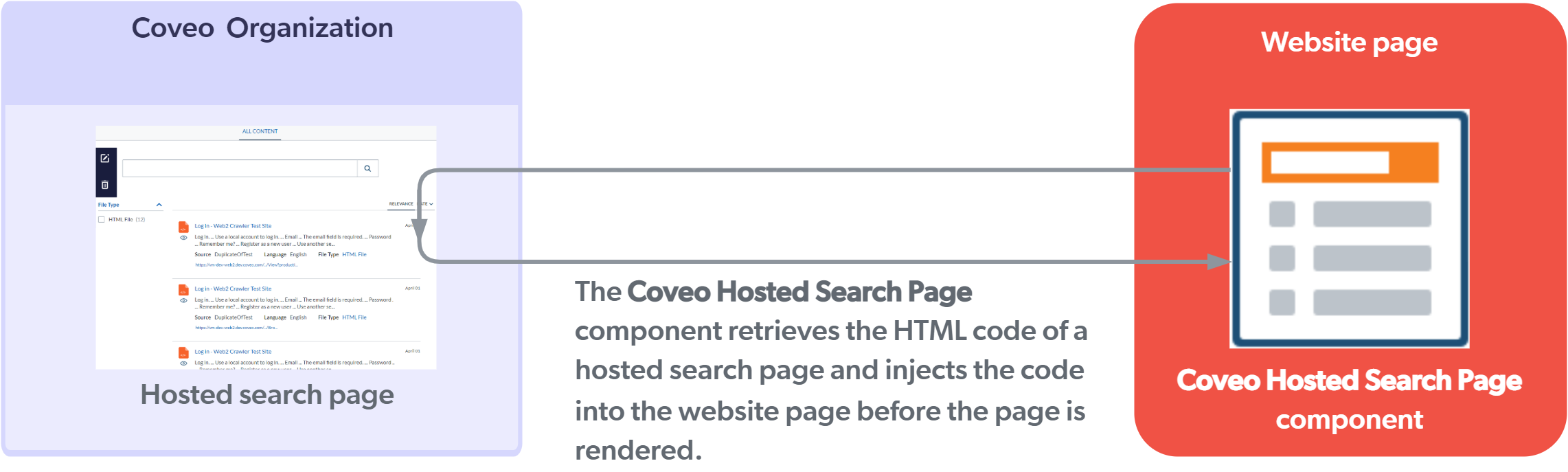

The role of the Coveo Hosted Search Page component is to retrieve the HTML code of a classic Coveo organization hosted search page and to inject that code into the web page. image::c4sc-v5/CoveoHostedSearchPageComponent.png[Hosted Search Page and Coveo Hosted Search Page component relationship,role="bordered zoom"]

Coveo organization setup

Before beginning your Coveo search solution development, you need to set up your environment.

The content in this section assumes your developers will collaborate on search pages in a Coveo sandbox organization (which should be a part of your User Acceptance Testing (UAT) environment). This setup ensures optimal team productivity and access to representative indexed data, while limiting the extent to which the developers can access and modify content and configurations in the sandbox organization.

Preliminary setup steps below are specifically assigned to a lead developer or administrator having administrator privileges in the sandbox organization (and hereafter referred to as the Administrator).

Step 1: Creating a group in your Coveo sandbox organization (Administrator)

The setup begins with creating a group in your Coveo sandbox organization for your search page developers. This step also includes assigning the required privileges at the group level.

Note

Assigning members to the group will be step 2.

On the Groups (platform-ca | platform-eu | platform-au) page of your sandbox organization in the Coveo Administration Console, click Add group.
In the Configuration tab, provide a Group name.
In the Privileges tab, grant the following access levels:

Domain Resource Access level

Content

Fields

View

Content

Sources

View all

Search

Execute queries

Allowed

Search

Search pages

Edit all
Click Add group.

Domain	Resource	Access level
Content	Fields	View
Content	Sources	View all
Search	Execute queries	Allowed
Search	Search pages	Edit all

Step 2: Adding members to the group (Administrator)

On the Groups (platform-ca | platform-eu | platform-au) page of your sandbox organization, click the group you created in step 1, and then click Edit in the Action bar.
Select the Members tab.
In the Members tab, under Additional members, click Invite Member.
Invite members.

Leading practice

Select Send an email notification when inviting members. The invitation email contains a link that the added member may use to log in to your Coveo sandbox organization.
When you’re done inviting members, click Save.

Building hosted search pages

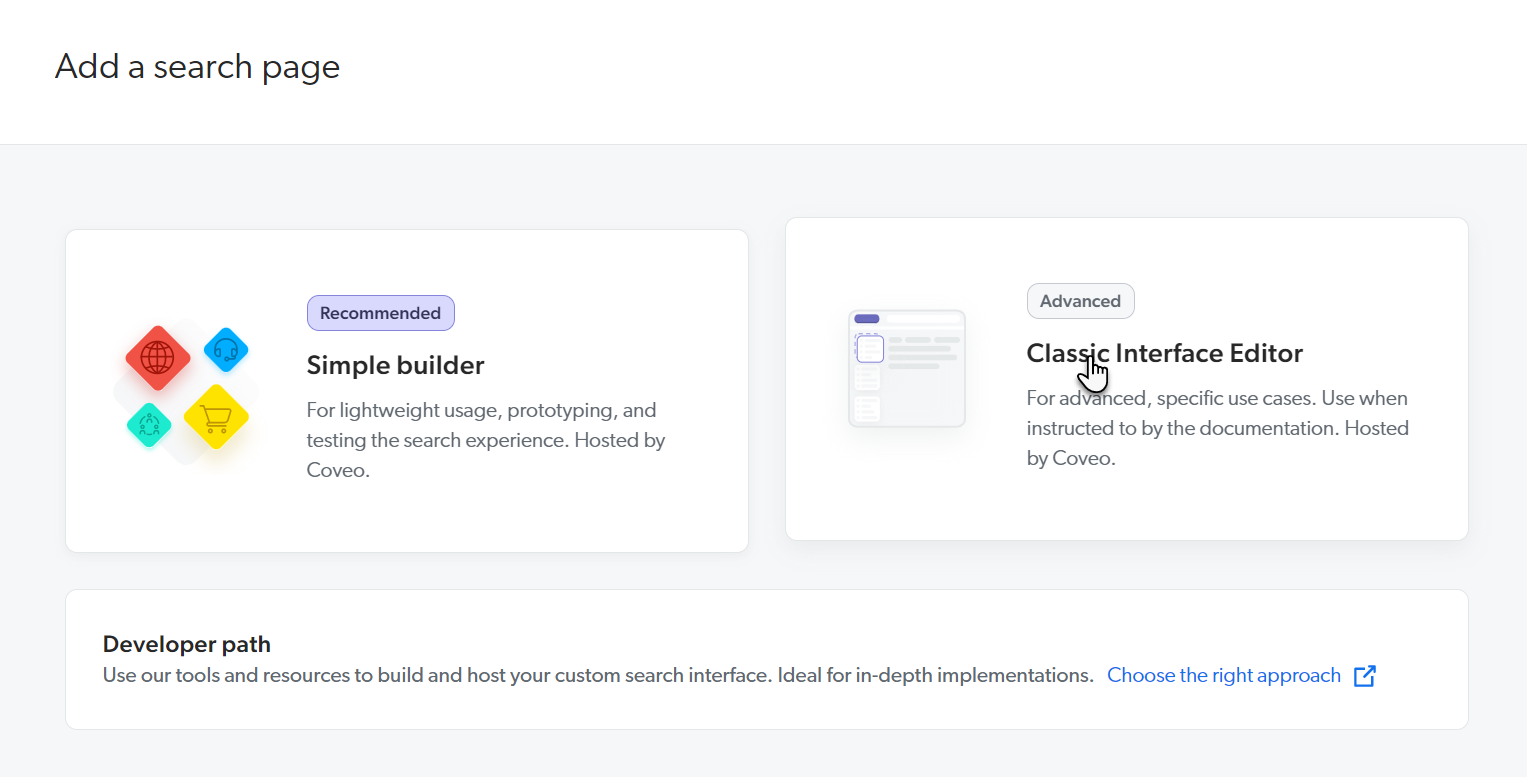

To use the Coveo Hosted Search Page component, you need to build a classic hosted search page first. Only classic hosted search pages are compatible with the Coveo Hosted Search Page component.

After the initial search page setup, you can access and further customize your search page using the Interface Editor. By default, the Interface Editor opens in the UI View. Modifications to the search page in the UI View generate HTML markup in the background. To fine-tune that markup or to leverage JS Search Framework components not supported by the UI View, use the Code View.

You can also edit the hosted search page properties (that is, its name, HTML title, and target JS Search Framework version) at any time.

(Optional) Customizing the search page styling

Hosted search pages apply a JS Search Framework stylesheet but organizations usually want to style a hosted search page to blend in with their site theme.

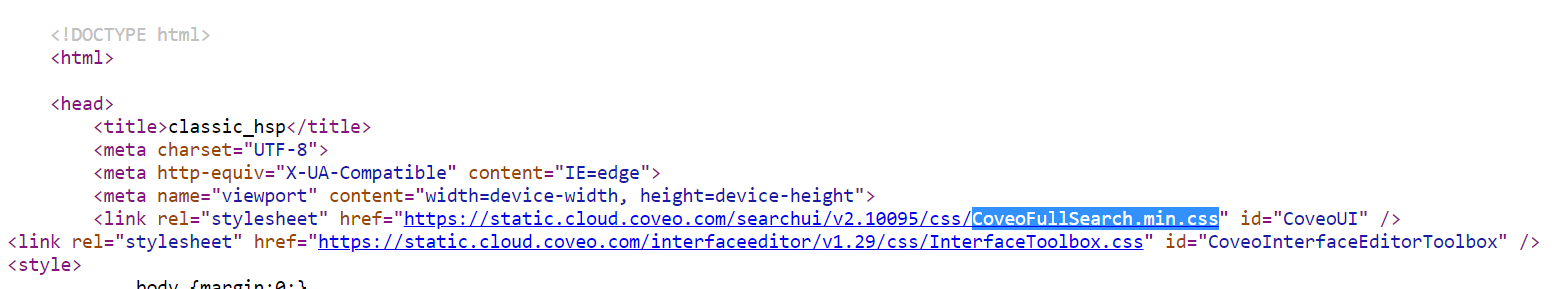

Various <div> elements of the hosted search page HTML serve as styling sections. Browsing the source code of the delivered hosted search page reveals that styles in the related JS Search Framework version CoveoFullSearch.min.css file are applied. image::c4sc-v5/HspStyling1.png[hosted search page source,role="bordered zoom"] You can customize the hosted search page styling by performing an HTTP POST request to the Coveo header CSS endpoint.

Note

You might need to adjust the domain portion of the above Swagger UI URL to match your data residency region.

You need to provide values for three parameters in your POST requests: pageID, organizationID, and payload.

To get the pageID and organizationID values

On the Search Pages (platform-ca | platform-eu | platform-au) page, click the classic hosted search page you want to use, and then click Copy ID in the Action bar.
Paste the hosted search page ID in a file so you can retrieve it later.
Get the organization ID from the URL and paste it in a file so you can retrieve it later.

Example

A user is viewing the Search Pages page. The URL is https://platform.cloud.coveo.com/admin/#/ourorgkkkybs20/search/search-pages

The organization ID is ourorgkkkybs20.
Use the hosted search page ID and organization ID values for the POST request pageID and organizationID parameters respectively.

To set the payload value

The payload parameter supports two use cases:

You can add a reference to a CSS file that will be included after the JS Search Framework CoveoFullSearch.min.css file.
You can add CSS styles directly in the payload. The payload CSS will be added in a script tag after the JS Search Framework CoveoFullSearch.min.css file.

The following table shows examples for both use cases.

Option Example

Option	Example
Referencing a CSS file	payload value: `{ "name": "CoveoSearchUI", "url": "https://stackpath.bootstrapcdn.com/bootstrap/3.4.1/css/bootstrap.min.css" }`
Generated HTML:
Adding inline CSS	payload value: `{ "inlineContent": "body { color: #e0e0e0; background-color: #2a2aa2; }", "name": "inline" }`
Generated HTML:

Referencing a CSS file

payload value:

{
  "name": "CoveoSearchUI",
  "url": "https://stackpath.bootstrapcdn.com/bootstrap/3.4.1/css/bootstrap.min.css"
}

Generated HTML:

adding reference to CSS file in hosted search page using a POST request

Adding inline CSS

payload value:

{
  "inlineContent": "body { color: #e0e0e0; background-color: #2a2aa2; }",
  "name": "inline"
}

Generated HTML:

adding inline CSS in hosted search page using a POST request

Configuring result templates

Hosted search pages let you use prebuilt JavaScript Search Framework result templates or design your own. You can assign conditions to result templates. For each query result, the Coveo JavaScript Search Framework uses its condition evaluation mechanism to determine which result template to use.

Ensuring search result hyperlink URLs reflect your public site DNS

You can ensure your search result hyperlink URLs reflect your public site DNS by having the host name part of your document URLs recomputed at query time. This requires an adjustment to your search page code.

To modify the hosted search page code in Coveo

Open the legacy hosted search page in the Interface Editor.
At the top of the page, select the CODE VIEW tab.

Add the following <script> block after the final closing </div> tag:

<script>
  document.addEventListener("DOMContentLoaded", function() {
    const publicHostname = window.location.protocol + '//' + window.location.hostname;
    let publicItemUrl;
    root = document.querySelector("#search");
    Coveo.$$(root).on("preprocessResults", function(e, args) {
      args.results.results.forEach(function(result) {
        publicItemUrl = result.clickUri.replace("<HOSTNAME_TO_CHANGE>", publicHostname);
        result.clickUri = publicItemUrl;
        result.printableUri = publicItemUrl;
      });
    });
  });
</script>

Replace <HOSTNAME_TO_CHANGE> with the protocol and host name of your indexed items (for example, https://development). To target multiple host names, replace <HOSTNAME_TO_CHANGE> with a variable and set its value using the JavaScript regular expression match() method prior to this line.

Search page deployment to your production Coveo organization (Administrator)

Once a search page has undergone the necessary testing in your UAT environment, you can apply the changes to the corresponding search page in your production organization. Coveo provides a handy resource snapshot feature to copy resources from your sandbox organization to your production organization, including search pages.
