Coveo Results List

This is for:

Developer System Administrator
Warning
Legacy feature

This article pertains to the Coveo Hive framework which is now in maintenance mode.

Choose one of Coveo’s more modern, lightweight, and responsive libraries for any future search interface development. See the search interface Implementation guide for more details.

Implements the Coveo JavaScript Search Framework CoveoResultList component, which is responsible for displaying query results.

Usage notes

  • It’s possible to include two Coveo Results List renderings in a search page, one using the List results layout, and the other using the Card results layout. You can then add a Coveo Result Layout rendering to allow users to toggle between both result layouts.

  • You can insert multiple result template renderings inside a Coveo Results List rendering. By associating conditions to these result templates, you can display result items differently from one another (see Result template conditions).

  • You can customize the CSS associated with this rendering.

Insertion location

Coveo Hive

The Coveo Results List rendering is an Allowed Control in the following placeholder(s): Results List

Example insertion sequence for the Coveo Results List rendering.

Coveo Hive SXA

Coveo for Sitecore SXA rendering insertion locations aren't limited by placeholder Allowed Controls. The Coveo Results List rendering may therefore be inserted throughout the partial design, whether in Coveo for Sitecore or Sitecore placeholders.

Example insertion sequence for the Coveo Results List rendering.

Data source options

The following table lists the available data source options for this rendering.

Option name Description

Results layout

See the layout component option.

Enable infinite scroll

See the enableInfiniteScroll component option.

Infinite scroll page size

See the infiniteScrollPageSize component option.

Enable scroll to top

See the enableScrollToTop component option.

Wait animation

See the waitAnimation component option.

DOM unique ID

Randomly generated HTML element ID.

Additional data attributes

Allows use of the Coveo JavaScript Search Framework CoveoResultList component options that aren’t directly available in the data source.

Sample generated HTML and corresponding visual output

In the following example, two Coveo Results List renderings have been inserted in the search interface, one using the Card results layout, and the other using the List results layout. The website visitor has selected the Card results layout on the search page, which adds the coveo-hidden value to the class attribute of the result list <div> element with the List data layout.

<div id="coveo70d09920" class="CoveoResultList" data-layout="card"
data-wait-animation="fade" data-auto-select-fields-to-include="false">
  <!-- code of the result template(s) inserted in the "Result Templates" placeholder
  of this Coveo Result List rendering appears here -->
</div>
<div id="coveofb205615" class="CoveoResultList coveo-hidden" data-layout="list"
data-wait-animation="fade" data-auto-select-fields-to-include="false">
  <!-- code of the result template(s) inserted in the "Result Templates" placeholder
  of this Coveo Result List rendering appears here -->
</div>

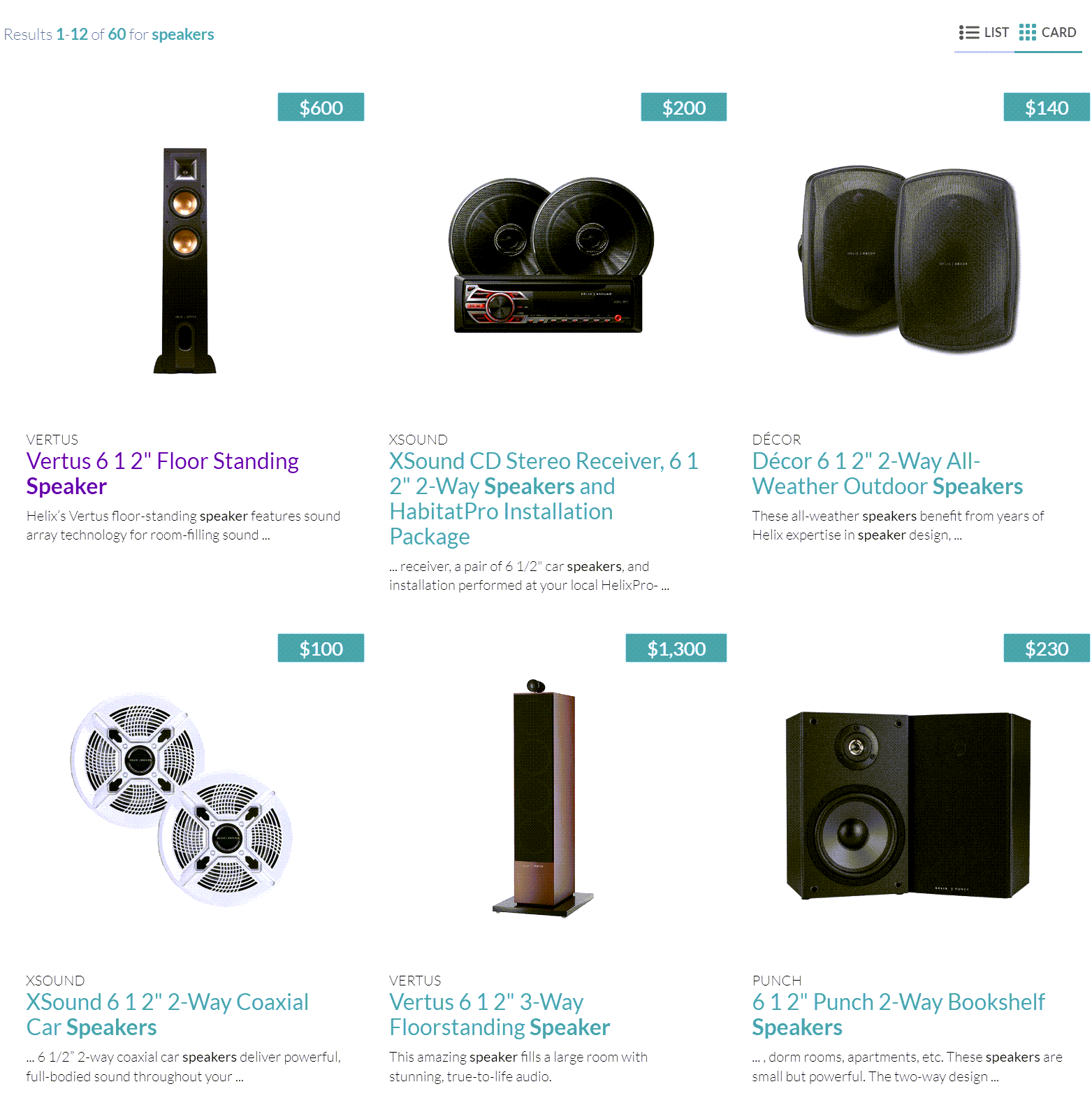

Results list on card layout | Coveo for Sitecore 5
