Install Coveo for Sitecore Alongside Sitecore in Azure PaaS

Coveo for Sitecore 5 (June 18, 2019)

The following article contains instructions and general information regarding the deployment of Coveo for Sitecore alongside a Sitecore 9.1/10.0/10.1 instance in a Microsoft Azure PaaS environment using WDPs (Web Deployment Packages).

Installing Sitecore and Coveo for Sitecore simultaneously on Azure using WDPs comes with the following limitations:

  • Sitecore SXA and Coveo for Sitecore SXA modules aren’t deployed. If necessary, SXA and Coveo for Sitecore SXA would need to be installed subsequently, and in that order, using traditional Sitecore packages, through the Installation Wizard.
  • Coveo has tested the successful installation of Sitecore 9.1/10.0/10.1 and Coveo for Sitecore using the XP Single Sitecore topology. Instructions, configurations and the deployment PowerShell script provided below are for this use case.
  • Activation and configuration of Coveo for Sitecore must be performed manually.
  • The Coveo for Sitecore WDP is designed for Content Management instances. It’s not optimized for Content Delivery instances as it contains items.
  • The Coveo for Sitecore Scaling Guide must be followed for the Content Delivery Azure App Service.

Prerequisites

The deployment of Sitecore and Coveo for Sitecore WDP packages on Azure PaaS requires:

  • an Azure account access with the necessary deployment resources uploaded to it

  • a computer with the Sitecore Azure Toolkit and its dependencies to run the PowerShell deployment commands locally.

In more detail, here are the prerequisites for both.

Your Azure Account Prerequisites

You need 5 WDPs:

  • the Sitecore site WDP

    To ensure special characters in queries don’t lock up your search pages, changes to the Content/Website/Web.config file are required before uploading the WDP to your Azure account (see Ajax Error 500 When Using Special Characters in a Query- Workaround).

  • the Sitecore xConnect site WDP

  • Sitecore Identity Server WDP, matching the Sitecore version to be installed

  • the Sitecore Bootloader module WDP (provided in the Sitecore Azure Toolkit in the \resources\<SITECORE_VERSION>\Addons folder)

  • the Coveo for Sitecore module WDP (use the WDP for the latest build accessible through the Releases and Downloads page).

You must also have 2 JSON deployment parameters files, one for the Sitecore Bootloader module and one for the Coveo for Sitecore module:

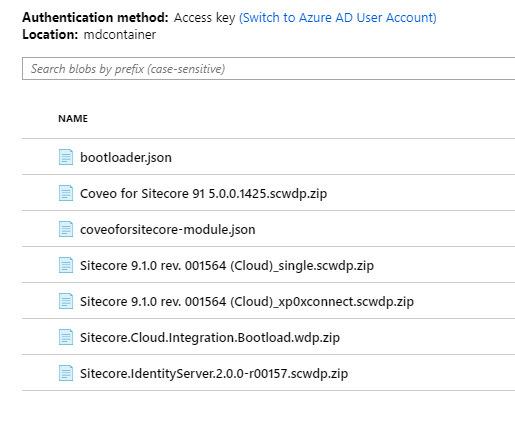

In summary, your Azure storage needs to contain the seven resources below for deployment:

Additionally, you will need to generate a Shared Access Signature token in your storage account. You will append the generated query string to your Azure resources references in the deployment configurations.

Your Local Computer Prerequisites

On the computer you will use to run the Sitecore Azure Toolkit commands to deploy the WDPs, you need to install the following:

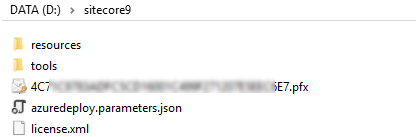

Additionally, you want a working folder structure such as the following before launching deployment:

where

  • The resources and tools folders are copies of the Sitecore Azure Toolkit resources and tools folders respectively.
  • The .pfx file is a Sitecore authentication certificate .pfx file (see The client certificate for Sitecore deployments). You will need the client certificate password in the deployment configurations.
  • The azuredeploy.parameters.json file is the deployment configuration file matching the version of your Sitecore WDP, which you have copied/downloaded and edited (see Editing the azuredeploy.parameters.json File).
  • The license.xml file is the Sitecore license file.

Editing the azuredeploy.parameters.json File

The azuredeploy.parameters.json file configurations determine the way a given Sitecore version topology and its modules are deployed. The base azuredeploy.parameters.json files available in the GitHub Sitecore Azure Quickstart Templates repository apply only for deployments of vanilla instances of Sitecore. The azuredeploy.parameters.json file must be edited to deploy Coveo for Sitecore, as a Sitecore module, along with Sitecore.

  1. In the Sitecore Azure Quickstart Templates repository, select the Sitecore version that matches the Sitecore WDPs you have uploaded to Azure (see Sitecore-Azure-Quickstart-Templates).
  2. Select the folder that matches your Sitecore WDP version.
  3. Select the folder that matches your Sitecore WDP topology.
  4. Click the azuredeploy.parameters.json link.
  5. Click Raw.
  6. Note the URL in your browser address box. You will need it for a variable value in the PowerShell deployment script.
  7. Save the displayed content as azuredeploy.parameters.json in your working folder, in accordance with the suggested folder structure (see Your Local Computer Prerequisites).
  8. Open the azuredeploy.parameters.json file in a text editor.
  9. Set the base azuredeploy.parameters.json parameter values.

    Parameter Value
    deploymentId Leave blank (It will be set by a PowerShell script.)
    location The geographic region of the current deployment (e.g., East US)
    sitecoreAdminPassword The new password for the Sitecore admin account (at least 8 characters)
    licenseXml Leave blank (It will be set by a PowerShell script.)
    sqlServerLogin User name of the SQL system administrator account to be created
    sqlServerPassword The password for the SQL administrator account (requires a number and a special character)
    siMsDeployPackageUrl The concatenation of the uploaded Sitecore Identity SCWDP URL and the Shared Access Signature token query string (e.g., https://<URL_OF_THE_SITECORE_IDENTITY_SCWDP>?<TOKEN>)
    singleMsDeployPackageUrl The concatenation of the uploaded Sitecore SCWDP URL and the Shared Access Signature token query string (e.g., https://<URL_OF_THE_SITECORE_SCWDP>?<TOKEN>)
    xcSingleMsDeployPackageUrl The concatenation of the uploaded Sitecore xConnect SCWDP URL and the Shared Access Signature token query string (e.g., https://<URL_OF_THE_SITECORE_XCONNECT_SCWDP>?<TOKEN>)
    authCertificateBlob Leave blank (It will be set by a PowerShell script.)
    authCertificatePassword The password you chose when creating the client auth certificate
    All machineLearning* parameters Leave blank if you don’t want Sitecore Cortex
  10. With the Sitecore XP topology, add an allowInvalidClientCertificates parameter to the file with a value of true. This parameter is available for the XM topology.

    "allowInvalidClientCertificates": {
      "value": true
    }

  11. Add the Coveo for Sitecore and Bootloader modules configurations.

    1. Add a modules parameter with the following content to the list of parameters.

      "modules":{
        "value":{
          "items":[
            {
              "name": "coveoforsitecore",
              "templateLink": "",
              "parameters": {
                "singleMsDeployPackageUrl" : ""
              }
            },
            {
              "name": "bootloader",
              "templateLink": "",
              "parameters": {
                "msDeployPackageUrl" : ""
              }
            }
          ]
        }
      }

    2. Set the Coveo for Sitecore module parameter values.

      Parameter Value
      templateLink The concatenation of the uploaded Coveo for Sitecore module JSON file URL and the Shared Access Signature token query string (e.g., https://<URL_OF_THE_COVEO_FOR_SITECORE_MODULE_JSON>?<TOKEN>)
      singleMsDeployPackageUrl The concatenation of the uploaded Coveo for Sitecore SCWDP and the Shared Access Signature token query string (e.g., https://<URL_OF_THE_COVEO_FOR_SITECORE_SCWDP>?<TOKEN>)
    3. Set the Bootloader module parameter values.

      Parameter Value
      templateLink The concatenation of the uploaded Sitecore Bootloader JSON file URL and the Shared Access Signature token query string (e.g., https://<URL_OF_THE_SITECORE_BOOTLOADER_MODULE_JSON>?<TOKEN>)
      msDeployPackageUrl The concatenation of the uploaded Sitecore Bootloader WDP and the Shared Access Signature token query string (e.g., https://<URL_OF_THE_SITECORE_BOOTLOADER_WDP>?<TOKEN>)
  12. Save the file.

Creating the PowerShell Deployment Script

The script variable values below pertain to a Sitecore 9.1 installation.

  1. Create a new file in a text editor.

  2. Paste the following script in your new file.

    $SCSDK="D:\sitecore9\tools"
    $SCTemplates="https://raw.githubusercontent.com/Sitecore/Sitecore-Azure-Quickstart-Templates/master/Sitecore%209.1.0/XPSingle"
    $DeploymentId = "<AZURE_DEPLOYMENT_ID>"
    $ResourceGroup = "<AZURE_RESOURCE_GROUP_NAME>"
    $LicenseFile = "D:\sitecore9\license.xml"
    $CertificateFile = "D:\sitecore9\<CERTIFICATE_FILE_NAME>.pfx"
    $SubscriptionId = "<AZURE_SUBSCRIPTION_ID>"
    $Location="East US"
    $ParamFile="D:\sitecore9\azuredeploy.parameters.json"
    $Parameters = @{
    "deploymentId"=$DeploymentId;
    "authCertificateBlob" = [System.Convert]::ToBase64String([System.IO.File]::ReadAllBytes($CertificateFile))
    }
    Import-Module $SCSDK\Sitecore.Cloud.Cmdlets.psm1
    Add-AzureRMAccount
    Set-AzureRMContext -SubscriptionId $SubscriptionId
    Start-SitecoreAzureDeployment -Name $ResourceGroup -Location $Location -ArmTemplateUrl "$SCTemplates/azuredeploy.json" -ArmParametersPath $ParamFile -LicenseXmlPath $LicenseFile -SetKeyValue $Parameters -Verbose

  3. Edit the script variable values per the information below.

    Variable Value
    $SCSDK The location of the tools directory that was copied from the Sitecore Azure Toolkit
    $SCTemplates The ARM Template URL of the azuredeploy.parameters.json file you saved, without the file name and the trailing slash (e.g., https://raw.githubusercontent.com/Sitecore/Sitecore-Azure-Quickstart-Templates/master/Sitecore%209.1.0/XPSingle)
    $DeploymentId The prefix that will be added to all resources created in Azure (can be anything up to 60 characters long)
    $ResourceGroup The name of the Azure Resource Group to install the services in (one resource group per Sitecore installation)
    $LicenseFile The location of your license.xml file
    $CertificateFile The location of your client authentication certificate file
    $SubscriptionId The Azure account subscription ID
    $Location The same Azure geographic location as your azuredeploy.parameters.json file and blob storage
    $ParamFile The location of your azuredeploy.parameters.json file
  4. Save your file.

Running the PowerShell Deployment Script

  1. Run PowerShell as an administrator.
  2. Copy-paste the deployment script from your text file into your PowerShell window.
  3. Run the script.

What’s Next?

You’re now ready to configure and activate Coveo for Sitecore (see Configuration and Activation Options).
