Leverage geolocalization

This is for:

Developer

The Coveo JavaScript Search Framework allows you to use geospatial data (latitude and longitude) in your indexed content to optimize search results based on the location of the end user (or a reference location).

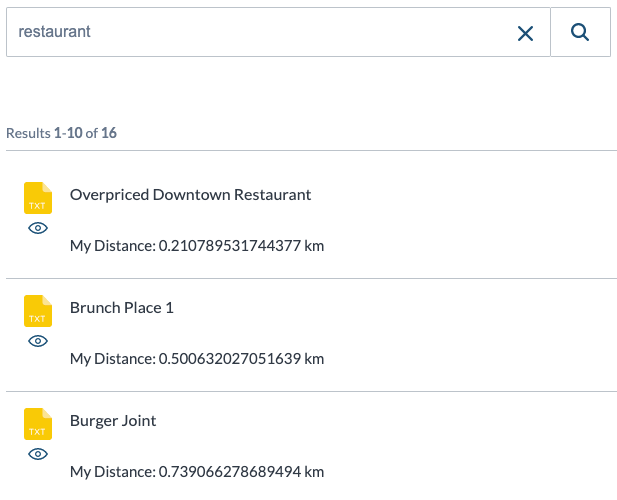

The end user searches for a restaurant. The index returns the closest results based on the current location of the end user.

Geolocalized Results

This article provides several examples of how you can use geolocalized results within your search interfaces.

Geolocation is resource-intensive and can increase query duration. It’s not recommended with a large index, unless you filter items beforehand (for example, with a constant query expression (cq)).

Requesting distance information

You can add the DistanceResources component anywhere in your search interface. The component will then calculate the distance between the location of the end user and each geolocalized item. These calculations are performed at query time and the distances are added to the dynamic field that you specify with the distanceField option.

This component doesn’t add geospatial data to your indexed content, so you will have to add latitude and longitude fields for each geolocalized item in your index. When configuring the DistanceResources component, you must specify the names of these fields using the latitudeField and longitudeField component options.

Configuring geolocalized results using the geolocation service of the end user’s web browser.

<div id="search" class="CoveoSearchInterface">
  <!-- ... -->
  <div class="CoveoDistanceResources"
      data-distance-field="@mydistance"
      data-use-navigator="true"
      data-latitude-field="@latitude"
      data-longitude-field="@longitude"></div>
  <!-- ... -->
</div>

There are three options for setting the location of the end user:

  • useNavigator requests the web browser geolocation service.

  • googleApiKey specifies the API key used to request the Google Maps Geolocation service.

  • latitudeValue and longitudeValue allow you to specify a reference end-user location to use if no other position is provided.

Sample use cases

Sort search results by distance

You can add a Sort component to your search interface, which will sort the results based on the distance between their indexed geolocation and that of the end user.

<div id="search" class="CoveoSearchInterface">
  <!-- ... -->
  <div class="CoveoDistanceResources" data-distance-field="@mydistance" data-use-navigator="true" data-latitude-field="@latitude" data-longitude-field="@longitude"></div>
  <!-- ... -->
  <div class="coveo-main-section">
    <!-- ... -->
    <div class="coveo-results-column">
      <!-- ... -->
      <div class="coveo-results-header">
        <!-- ... -->
        <div class="coveo-sort-section">
          <span class="CoveoSort coveo-distance-disabled" data-sort-criteria="@mydistance ascending" data-caption="Distance"></span>
        </div>
        <!-- ... -->
      </div>
      <!-- ... -->
    </div>
    <!-- ... -->
  </div>
  <!-- ... -->
</div>

The disabledDistanceCssClass option allows you to hide a component until the end user’s position is resolved. As shown in the above example, you can enable it by adding the coveo-distance-disabled CSS class to the component you want to hide. If the end user refuses to share their distance, this component will remain hidden.

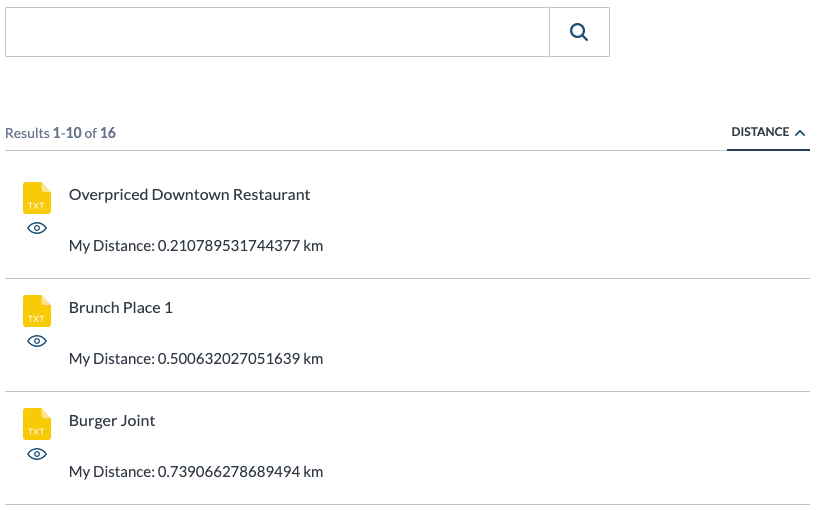

A result list sorted by distance:

Sort results by distance

Filter search results by distance

You can add a FacetSlider component to your search interface to allow the end user to filter search results based on a range of values.

<div id="search" class="CoveoSearchInterface">
  <!-- ... -->
  <div class="CoveoDistanceResources" data-distance-field="@mydistance" data-use-navigator="true" data-latitude-field="@latitude" data-longitude-field="@longitude"></div>
  <!-- ... -->
  <div class="coveo-main-section">
    <!-- ... -->
    <div class="coveo-facet-column">
      <div class="CoveoFacetSlider coveo-distance-disabled" data-title="Distance" data-field="@mydistance" data-start="0" data-end="10" data-display-as-value-unit-sign="km"></div>
    </div>
    <!-- ... -->
  </div>
  <!-- ... -->
</div>

The dynamic distance field is populated at query time, so the index can’t automatically determine a range of values for the slider facet. For this to work correctly, you must manually add start and end values.

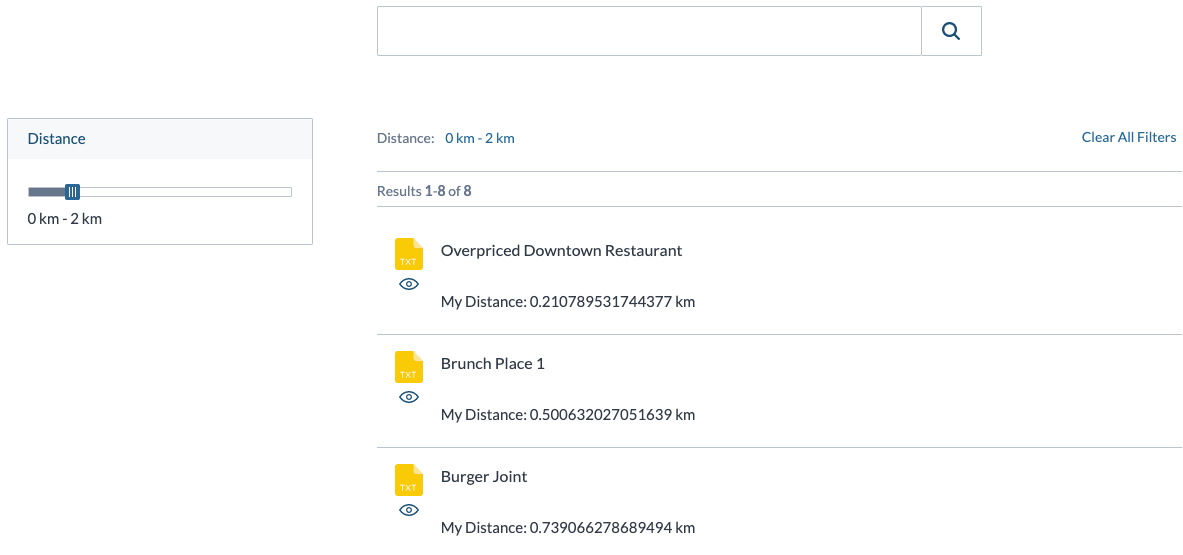

A result list filtered by distance:

Filter results by distance

Boost search results by distance

You can use a query ranking function in the query pipeline to boost results based on the distance between their indexed geolocation and that of the end user.

If you’re only using distance to rank items, you can improve performance by directly calling the dist() function inside the query ranking function instead of referencing a distance field that was previously computed (see $qf).

  1. In the Coveo Administration Console, on the Query Pipelines (platform-ca | platform-eu | platform-au) page, click the target query pipeline, and then click Edit components in the Action bar, or create a new one.

  2. Select the Advanced tab, and then select Filters.

  3. Click Add Rule, and then select Filters rule. The Add a Filter Rule dialog appears.

  4. Click the Query parameter dropdown menu, and then select aq (advanced query).

  5. In the Query filter input, add a query ranking function to boost the search results based on distance (see $qrf).

    $qrf(expression: '100 * -sqrt(@mydistance)')

  6. Click Add Rule.
