This article pertains to the Coveo Hive framework which is now in maintenance mode.

Choose one of Coveo’s more modern, lightweight, and responsive libraries for any future search interface development. See the search interface Implementation guide for more details.

Coveo for Sitecore 5.0.710.2

Coveo for Sitecore Specific Rendering This rendering pulls the source code from the selected legacy hosted search page and injects it into the layout of the related Sitecore content item.

Usage notes

Ensure you provide a meaningful Search Hub value in the data source. Not setting a meaningful Search Hub value negatively impacts usage analytics reporting and machine learning functionalities (see About the Search Hub).
To use this rendering, you need to have a legacy hosted search page.
The Coveo Hosted Search Page rendering is integrated in the Example Hosted Search Page branch template to ease its use. The Insertion Sequence section video illustrates this scenario.
In your Coveo organization, for both the Search and the Configuration API keys, the Edit access level on the Search pages and IPX domain is required.
For instructions on how to automatically have search result hyperlink URLs reflect the CD host name, see Get Dynamic Clickable URIs in Search Results.

Insertion Sequence

Coveo Hive

The Coveo Hosted Search Page rendering is an Allowed Control in the following placeholder(s): coveo-ui

Example insertion sequence for the Coveo Hosted Search Page rendering.

Data source options

The following table lists the available data source options for this rendering.

Option name	Description
Search Page	The Coveo legacy hosted search page whose code will be injected into the layout of the related Sitecore content item.
Search Hub	Value to tag search events with when these search events originate from the hosted search page Sitecore content item (see About the Search Hub).

Option name

Description

Search Page

The Coveo legacy hosted search page whose code will be injected into the layout of the related Sitecore content item.

Search Hub

Value to tag search events with when these search events originate from the hosted search page Sitecore content item (see About the Search Hub).

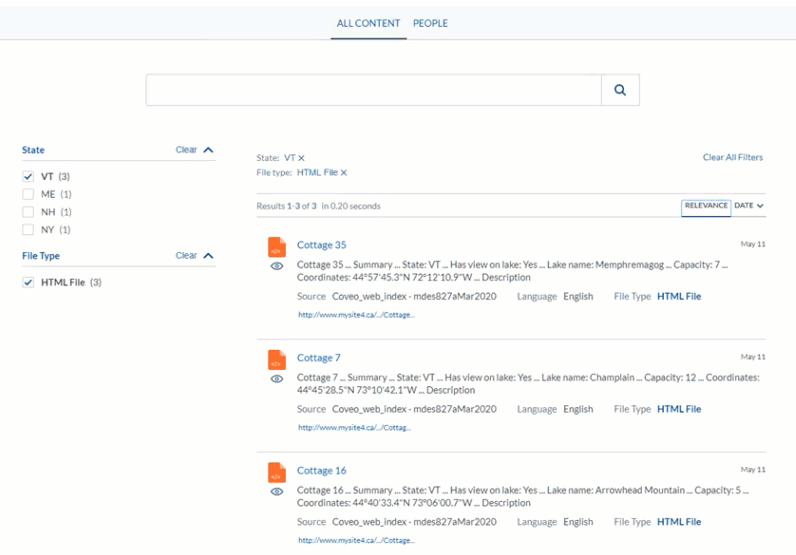

Sample generated HTML and corresponding visual output

<link rel="stylesheet" href="/Coveo/Hive/css/CoveoFullSearch.css" />
<link rel="stylesheet" href="/Coveo/Hive/css/CoveoForSitecore.css" />
<script class="coveo-script" type="text/javascript" src='/Coveo/Hive/js/CoveoJsSearch.Lazy.min.js'></script>
<script class="coveo-for-sitecore-script" type="text/javascript"
src='/Coveo/Hive/js/CoveoForSitecore.Lazy.min.js'></script>
<script type="text/javascript" src="/Coveo/Hive/js/cultures/en.js"></script>
<div>
  <div id="_63A0B5E2-BE88-40DB-B0EC-3D211AF99E02"
    class="hostedSearchPage"
    data-search-page-id='2ede0221-a906-4def-82c7-5eb9b608a282'
    data-search-hub='Hosted Page Search Hub'
    data-search-endpoint-uri='https://platform.cloud.coveo.com'
    data-analytics-endpoint-uri='https://analytics.cloud.coveo.com'
    data-organization-id='mdtesteq9p1ksw'
    data-is-in-experience-editor='false'>
  </div>
  <script type="text/javascript">
      document.addEventListener("DOMContentLoaded", function () {
          var hostedSearchPage = document.querySelector(".hostedSearchPage");

          if (hostedSearchPage && typeof CoveoForSitecore !== "undefined") {
              CoveoForSitecore.initHostedSearchPageInitializer(hostedSearchPage);
          }
      });
  </script>
</div>
